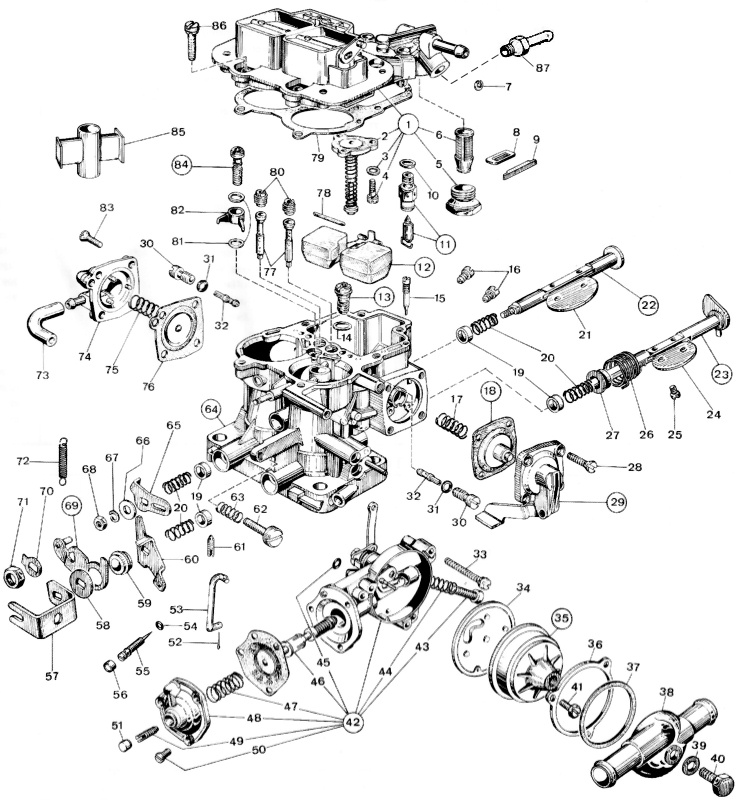

| Id | Číslo![]() | Ks | Název![]() |
| 1 | 31716.711 | 1 | TOP COVER ASSY including: |
| 2 | 57804.123 | 1 | — Power valve diaphragm |
| 3 | 55510.038 | 3 | — Washer |
| 4 | 64700.007 | 3 | — Power valve fixing screw |
| 5 | 61002.018 | 1 | — Strainer inspection plug |
| 6 | 37022.002 | 1 | — Strainer |
| 7 | 10140.501 | 1 | Lock ring |
| 8 | 52135.018 | 1 | Dust seal plate |
| 9 | 61070.002 | 1 | Dust seal plug |
| 10 | 83102.070 | 1 | Needle valve gasket |
| 11 | 79516.200 | 1 | Needle valve |
| 12 | 41030.020 | 1 | Float |
| 13 | 64235.016 | 1 | Full power needle valve |
| 14 | 41530.013 | 1 | Full power valve gasket |
| 15 | 64900.001 | 1 | Pump discharge blanking screw |
| 16 | 73801.132 | 1 | Primary main jet |
| 16 | 73801.140 | 1 | Secondary main jet |
| 17 | 47600.092 | 1 | Pump loading screw |
| 18 | 47407.048 | 1 | Pump diaphragm |
| 19 | 12750.085 | 4 | Shaft retaining bush |
| 20 | 47600.027 | 4 | Bush retaining spring |
| 21 | 64005.034 | 1 | Secondary throttle valve |
| 22 | 10015.492 | 1 | Secondary main shaft |
| 23 | 10015.493 | 1 | Primary main shaft |
| 24 | 64005.090 | 1 | Primary throttle valve |
| 25 | 64520.023 | 4 | Throttle valve fixing screw |
| 26 | 47610.079 | 1 | Primary main shaft return spring |
| 27 | 12765.047 | 1 | Spacer |
| 28 | 64565.001 | 4 | Pump cover fixing screw |
| 29 | 32486.076 | 1 | Pump cover |
| 30 | 52570.006 | 2 | Idle jet holder |
| 31 | 41565.002 | 1 | Idle jet holder « 0 » Ring seal |
| 32 | 74403.045 | 1 | Primary idle jet |
| 32 | 74403.045 | 1 | Secondary idle jet |
| 33 | 64700.008 | 3 | Auto-choke body fixing screw |
| 34 | 41640.052 | 1 | Heat seal gasket |
| 35 | 57804.138 | 1 | Thermostat housing |
| 36 | 52135.006 | 1 | Thermostat housing locking ring |
| 37 | 41555.001 | 1 | Water cover seal gasket |
| 38 | 32444.005 | 1 | Water cover |
| 39 | 41530.002 | 1 | Water cover screw gasket |
| 40 | 64610.014 | 1 | Water cover fixing screw |
| 41 | 64615.005 | 3 | Lock ring fixing screw |
| 42 | 57804.265 | 1 | AUTO-CHOKE ASSY including: |
| 43 | 64590.004 | 1 | — Fast idle lever adjusting screw |
| 44 | 47600.007 | 1 | — Spring |
| 45 | 41565.008 | 1 | — Auto-choke body « 0 » ring seal |
| 46 | 47407.162 | 1 | — Choke diaphragm |
| 47 | 47600.141 | 1 | — Diaphragm loading spring |
| 48 | 32384.045 | 1 | — Diaphragm cover |
| 49 | 64595.022 | 1 | — Diaphragm adjusting screw |
| 50 | 64560.004 | 3 | — Diaphragm cover fixing screw |
| 51 | 61075.011 | 1 | Screw plug |
| 52 | 32610.005 | 1 | Split pin |
| 53 | 61280.082 | 1 | Fast idle control rod |
| 54 | 41565.010 | 1 | Idle mixture screw « 0 » ring seal |
| 55 | 64750.051 | 1 | Idle mixture adjusting screw |
| 56 | 61075.013 | 1 | Idle mixture tamper proof plug |
| 57 | 45136.029 | 1 | Main lever |
| 58 | 55510.061 | 1 | Spacer |
| 59 | 12765.002 | 1 | Free lever bush |
| 60 | 45046.016 | 1 | Throttle valve control lever |
| 61 | 64595.005 | 1 | Secondary throttle adjusting screw |
| 62 | 64585.007 | 1 | Primary throttle adjusting screw |
| 63 | 47600.007 | 1 | Primary throttle adjusting screw spring |
| 64 | | 1 | Main body |
| 65 | 45032.124 | 1 | Secondary throttle control lever |
| 66 | 55510.046 | 1 | Washer |
| 67 | 55525.001 | 1 | Spring washer |
| 68 | 34705.001 | 1 | Secondary shaft fixing nut |
| 69 | 45069.011 | 1 | Free lever |
| 70 | 55520.002 | 1 | Primary shaft lock washer |
| 71 | 34715.014 | 1 | Primary shaft fixing nut |
| 72 | 45605.010 | 1 | Free lever return spring |
| 73 | 61400.022 | 1 | Pneumatic pump connecting pipe |
| 74 | 32486.075 | 1 | Pneumatic pump cover |
| 75 | 47600.233 | 1 | Pneumatic pump loading spring |
| 76 | 47407.115 | 1 | Pneumatic pump diaphragm |
| 77 | 61440.220 | 1 | Primary emulsion tube |
| 77 | 61440.220 | 1 | Secondary emulsion tube |
| 78 | 52000.015 | 1 | Float pivot |
| 79 | 41705.040 | 1 | Top cover gasket |
| 80 | 77201.175 | 1 | Primary air correction jet |
| 80 | 77201.125 | 1 | Secondary air correction jet |
| 81 | 41530.012 | 2 | Pump jet gasket |
| 82 | 76212.045 | 1 | Pump jet |
| 83 | 64565.001 | 4 | Pneumatic pump cover fixing screw |
| 84 | 64290.017 | 1 | Pump delivery valve |
| 85 | 70936.350 | 1 | Primary auxiliary venturi |
| 85 | 70936.450 | 1 | Secondary auxiliary venturi |
| 86 | 64700.001 | 6 | Top cover fixing screw |
| 87 | 10525.023 | 3 | Inlet pipe |
